The Flagship
Vacuum Truck

UTC Industries' flagship product and core USP — the reference configuration for chassis sourcing, service tie-ups and OEM discussions.

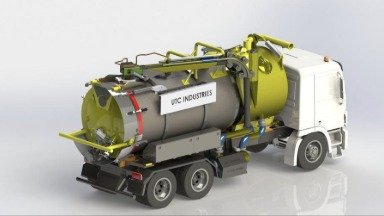

3D engineering render of the UTC chassis-mounted vacuum tanker

Field-deployed UTC vacuum truck ready for operation

General arrangement drawing — front view

3D Engineering Render — Chassis-Mounted Vacuum Tanker 01 / 05

14m³

Tank Volume

8,200m³/h

Air Displacement

−0.9bar

Max Vacuum

45–60°

Tipping Angle

ATank & Body

Tank Volume14 m³ (14,000 L)

Effective Load13.5 m³ (13,500 L)

Tank MaterialStainless Steel — 304

Tipping Angle45–60°

Discharge8″ cam lock, rear

BVacuum System

Pump TypeRoots blower (Hibon)

Air Displacement8,200 m³/h

Max Vacuum−0.9 bar (9,000 mbar)

DriveDirect prop-shaft, PTO

FiltrationCyclone, auto-cleaning

Chassis Partnership & Service Enquiry

Currently seeking chassis supply & service partnerships

Our reference build runs on a heavy-duty 6×4 rigid configuration in the 28-tonne GVW class. We're looking to formalise chassis supply and service tie-ups (OEM / MOU) to match customer fleets, service networks and commercial terms.

Ashok Leyland Tata BharatBenz Equivalent OEM Chassis

Discuss Partnership
