08 Fluid Vac · Cyclone Technology

Industrial Vacuum Truck

A heavy-duty vacuum tanker with cyclone separation — engineered to collect and transport dry, wet and hazardous substances safely and efficiently for industrial applications.

12m³Tank volume
188kWTri-lobe blower
96%Max. vacuum
Download E-Brochure Request a Quote

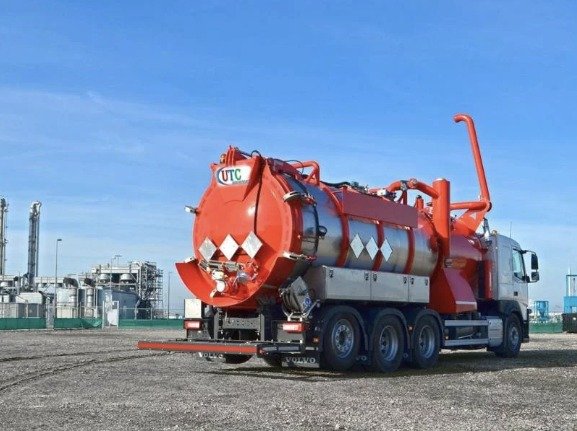

UTC industrial vacuum truck with cyclone separator Dry, Wet & Hazardous
Industrial Vacuum Truck3-axle · 33-tonne class
01 Fluid Vac · Cyclone Technology

For dry and wet substances.

Partly automated and built to serve a wide range of industrial applications, UTC equipment is engineered to collect and transport hazardous products safely and efficiently.

Handles Catalyst(Roof) gravelPowdersFly ashSludgeSandLiquids

Key Features

  • 01
    Cyclone separator systemThe air-displacement system with cyclone separator — a vacuum tanker with cyclone separator — is designed for heavy industrial applications.
  • 02
    Suction to dischargeSuited to suctioning, displacing (optional), transporting and discharging dry, wet and hazardous substances.
  • 03
    Robust buildEfficient metal inner liner, rubber feet and an adjustable-height front door with strengthened security lock points.
  • 04
    Certified versionsDeveloped for hazardous and contaminated substances; available in ASME, ADR and ATEX (Ex) pump-system versions, built to all applicable safety standards.
03 Product Features

High suction. Huge time savings.

The perfect vacuum tanker for heavy-duty suction, displacement and transport in construction, (petro)chemical and other industrial applications.

Tri-lobe blower

The powerful tri-lobe blower gives the vacuum tanker with cyclone separator very high suction and displacement capacity — processing large quantities of dry substances, liquids, gravel and sand in a very short time. The result: significant time savings and a large reduction in cost.

188kWVacuum power
96%Max. under-pressure
1,050mbarBlowing overpressure
6″DN 150 hoses
Easy control

Straightforward operation from the control panel.

Self-cleaning cyclones

Self-cleaning cyclone separation keeps the cyclones dust-free at all times.

Latest standards

Built to the latest environmental and safety standards.

04 Technical Specifications

Every component, specified.

Pressure Vacuum Tank

Volume12 m³, excl. cyclone separator
MaterialStainless steel AISI 304 / 316
Rear doorHydraulic opening and bolting

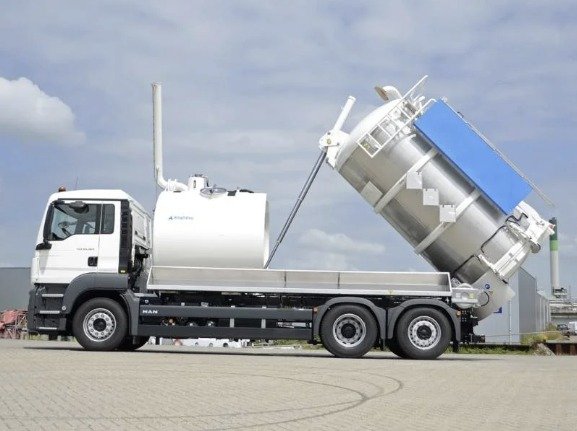

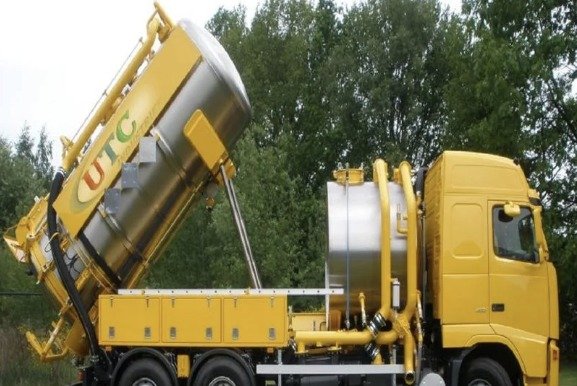

DischargeTipping (45°) or air displacement
LoadingSuctioning, or through the manhole on top
Connection6″ on the rear door, with shut-off valve and coupling as desired (excl. quick-exchange system)

Vacuum Pump

TypeTri-lobe blower / HIBON (air-injection blower)
Air displacement188 kW, for suctioning with 6″ (DN 150) hoses
Max. vacuum96%
Max. overpressure1,050 mbar
DriveCrankshaft and V-belt transmission from the flywheel PTO
NoiseIncluding silencers

Cyclone Separator Device

Design2 × 4 cyclones for separating particles
Separator tankVacuum-return system combined with an air-cleaning system (air shock / air return current) to clean the cyclones and filter elements
Filter cleaningProgrammed 3-position pulse time / interval switch, adjustable from the control panel
Level indicatorWet / dry, in the collecting receptacle
Air separationAir-current separation system in the separator tank
Safety filterEach cyclone has its own fine-dust safety filter

Standard Safety Provisions

Rupture discHose-rupture safety valves (rear door & tipping cylinder)Beacon lightEmergency stopTip unbolting protectionRepair cross beamCatwalkRear-door clamp protectionEarth reelEmergency stop reelRear-door protectionTipping protectionPowder extinguisher

Dimensions (approx., chassis-dependent)

9,650mmLength
2,550mmWidth
3,750mmHeight
33tMax. permissible weight
Wheelbase4,800 mm (axle 1–2) + 1,400 mm
Chassis33-tonne 6×4 chassis
